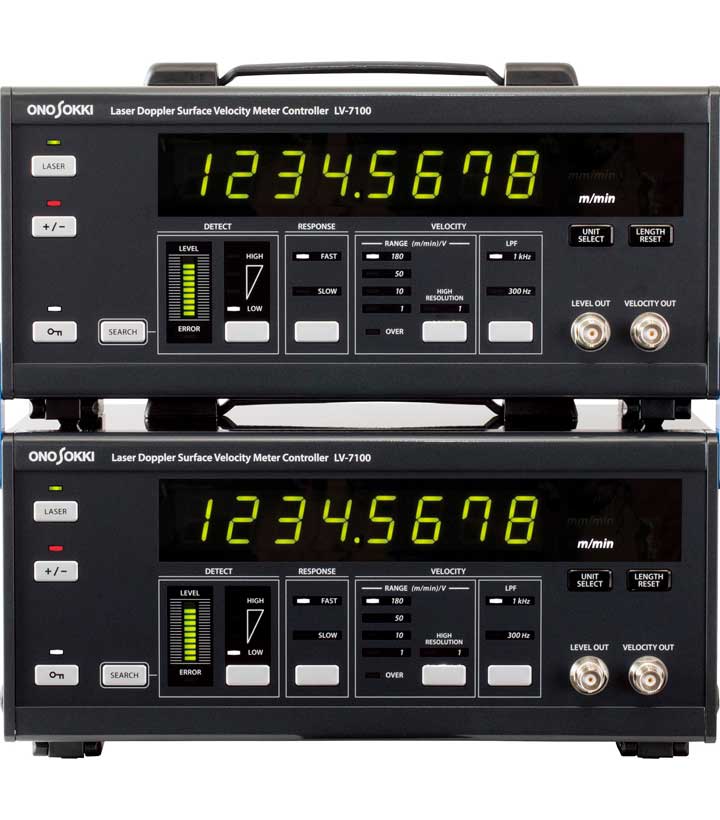

LV-7000

Laser Doppler Surface Velocity Meter

LV-7000
LV-7000
LV-7000
LV-7000
LV-7000
LV-7000

The LV-7000 series laser Doppler surface velocity meter offers non-contact detection of velocity, velocity irregularity and displacement of rotating and moving objects.

  • High sensitivity detection class 2 laser.
  • Non-contact detection with no-load measurement.
  • Simple operation and high function.

SEND Inquiry

Specifications

Operating temperature 0 to 40°C
Dimensions (W) 310mm (H) 135mm (D) 176mm
Weight Approx. 3 kg
Conforming Standard IEC60825-1:2007:2014 / FDA 21CFR Part 1040.10
Detection Method Laser Doppler (Back Scattering Differential)
Detection Velocity Range 0 to +/- 1800 m/min
Center of Detection Length 200mm
Accessories AC power cable x1, SAFETY LOCK connector x1, RESET IN connector x 1, ERROR OUT connector x 1, SIG A/SIG B OUT x 1, Signal cable (1.5 m) x 2, Backup fuse x 1, Instruction manual x 1

Notes

There are no additional notes for this product.
